6. Capacitor Basics

Question.3

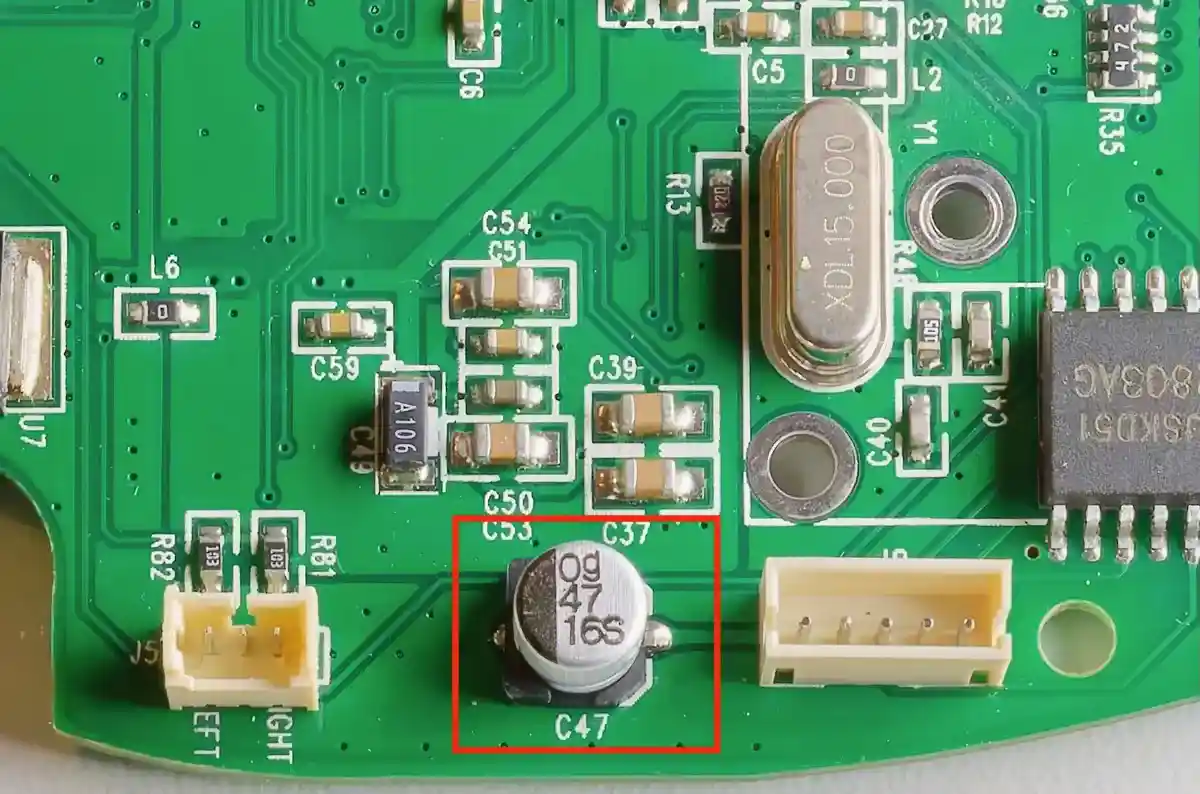

You are inspecting an SMD aluminum electrolytic capacitor mounted on a PCB.

Which pad or marking indicates the negative terminal?

The black stripe marks the positive lead, and the other lead (unmarked) is negative.
The black stripe indicates the negative terminal
SMD electrolytic capacitors are non-polarized

Restart quiz!
