Question.4

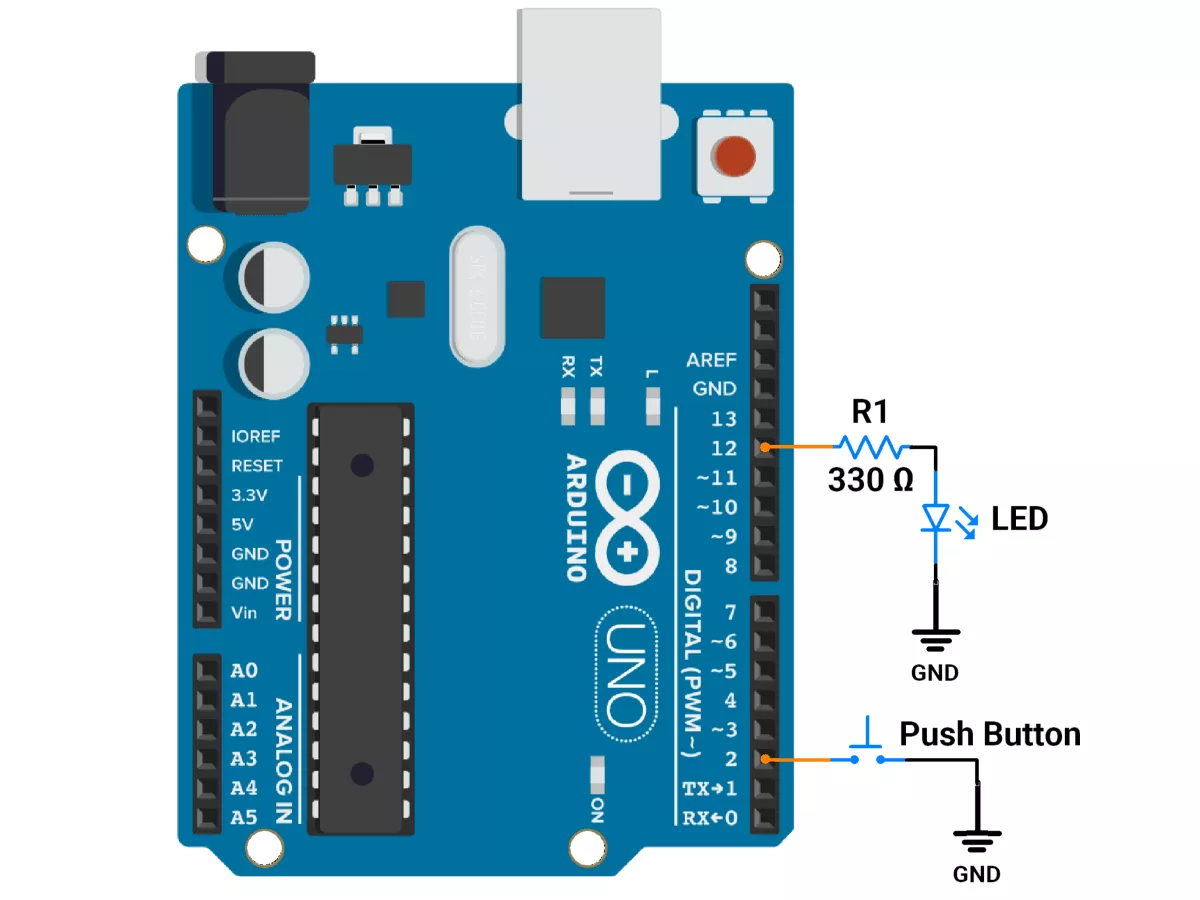

After executing the following code on an Arduino UNO and pressed and released the push button after 50ms, what will happen?
Note: Consider no noise is created from button press.
Code
#define BUTTON_PIN 2
#define LED_PIN 12
//NOTE: Writing ISR like this is not recommended. It is only for demonstration purposes.
void INT0_ISR() {
sei();
while(1);
}
// ISR: Toggles LED every 1 sec
ISR(TIMER1_COMPA_vect) {
digitalWrite(LED_PIN, !digitalRead(LED_PIN));
}
void setup() {
pinMode(BUTTON_PIN, INPUT_PULLUP); // Enable internal pull-up resistor
pinMode(LED_PIN, OUTPUT);
// Attach interrupt to pin 2 (INT0) and Trigger on FALLING edge (button press)
attachInterrupt(digitalPinToInterrupt(BUTTON_PIN), INT0_ISR, FALLING);
// Configure Timer1 in CTC mode
TCCR1A = 0; // Normal operation (no PWM)
TCCR1B = (1 << WGM12) | (1 << CS12) | (1 << CS10); // CTC Mode, Prescaler = 1024
OCR1A = 15624; // Compare match value for 1 second (16MHz / 1024 / 1Hz)
TIMSK1 |= (1 << OCIE1A); // Enable Timer1 Compare Match A interrupt
sei(); // Enable global interrupts
}
void loop() {
}
