5. Resistor Selection
Question.2

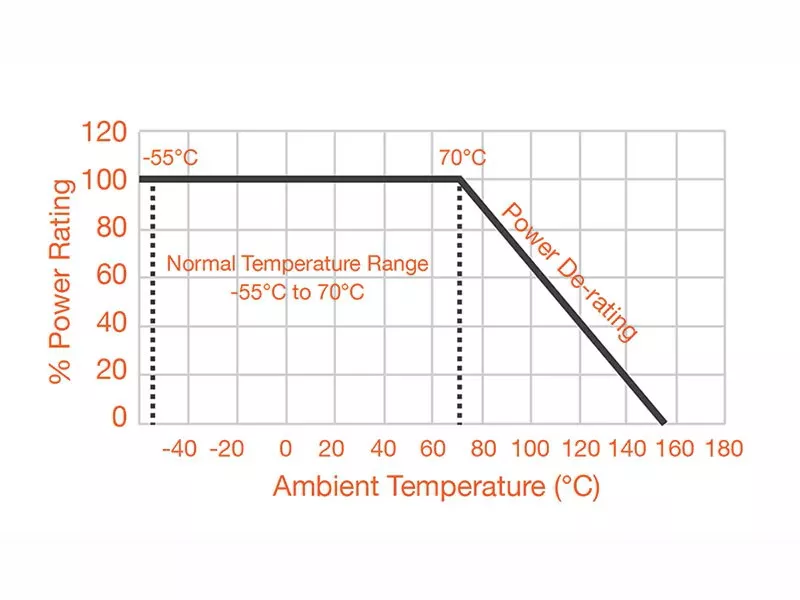

A 1/4-watt resistor (0.25W) has a derating curve that starts at shown below. (DigiKey Part No- CFP1/4CT52R102J). Derating curve that starts at 70°C and drops linearly to 0W at 155°C.
What is the maximum power this resistor can safely dissipate at 100°C?
