7. GPIO Practices and Cautions

Question.2

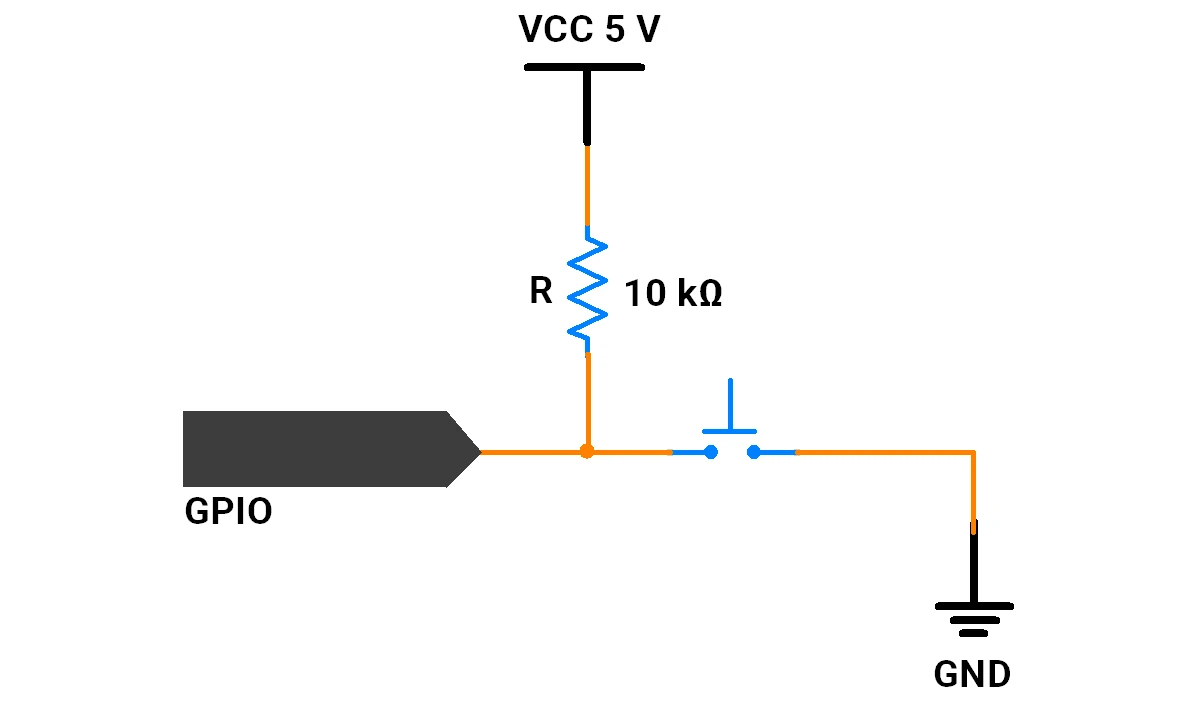

Kevin has built the following circuit. By running which of the following programs on Arduino will damage its GPIO when the switch is pressed?

Need Help? Refer to the Quick Guide below

#define GPIO 4

void setup() {
  pinMode(GPIO, INPUT_PULLUP);
}
void loop() {
  bool readState = digitalRead(GPIO);
}

#define GPIO 4

void setup() {
  pinMode(GPIO, OUTPUT);
}
void loop() {
  digitalWrite(GPIO, LOW);
}

#define GPIO 4

void setup() {
  pinMode(GPIO, OUTPUT);
}
void loop() {
  digitalWrite(GPIO,HIGH);
}

#define GPIO 4

void setup() {
  pinMode(GPIO, INPUT);
}
void loop() {
  bool readState = digitalRead(GPIO);
}

Restart quiz!
