7. GPIO Practices and Cautions

Question.6

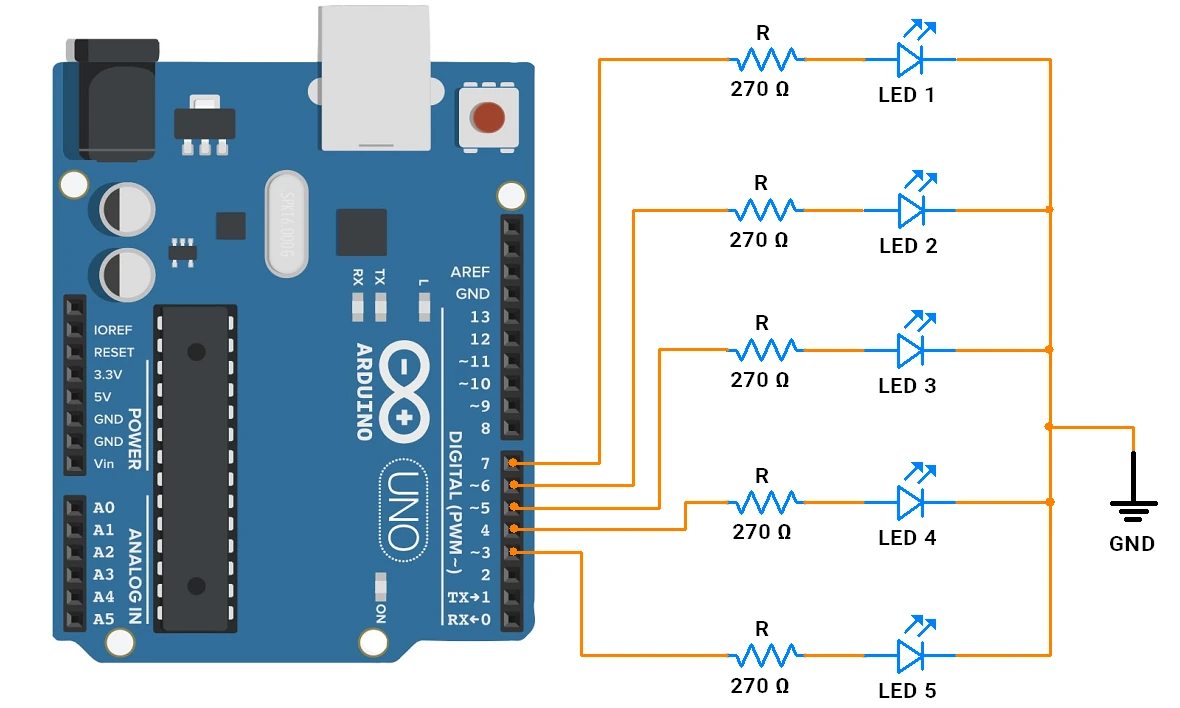

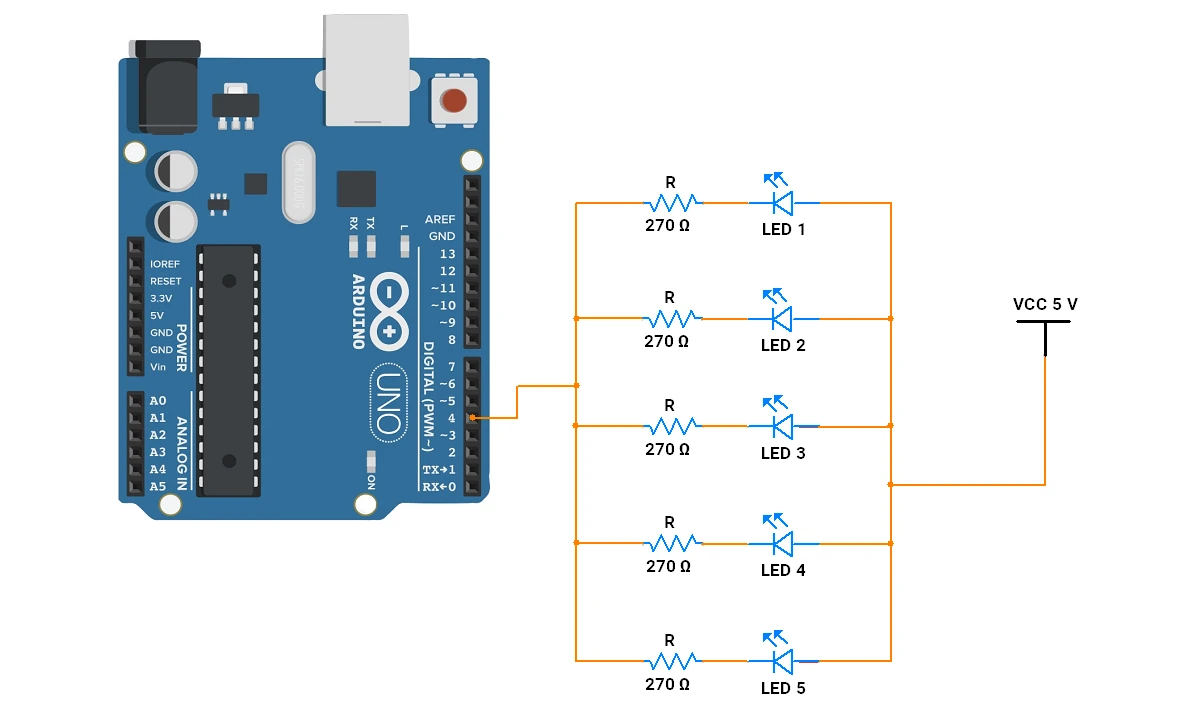

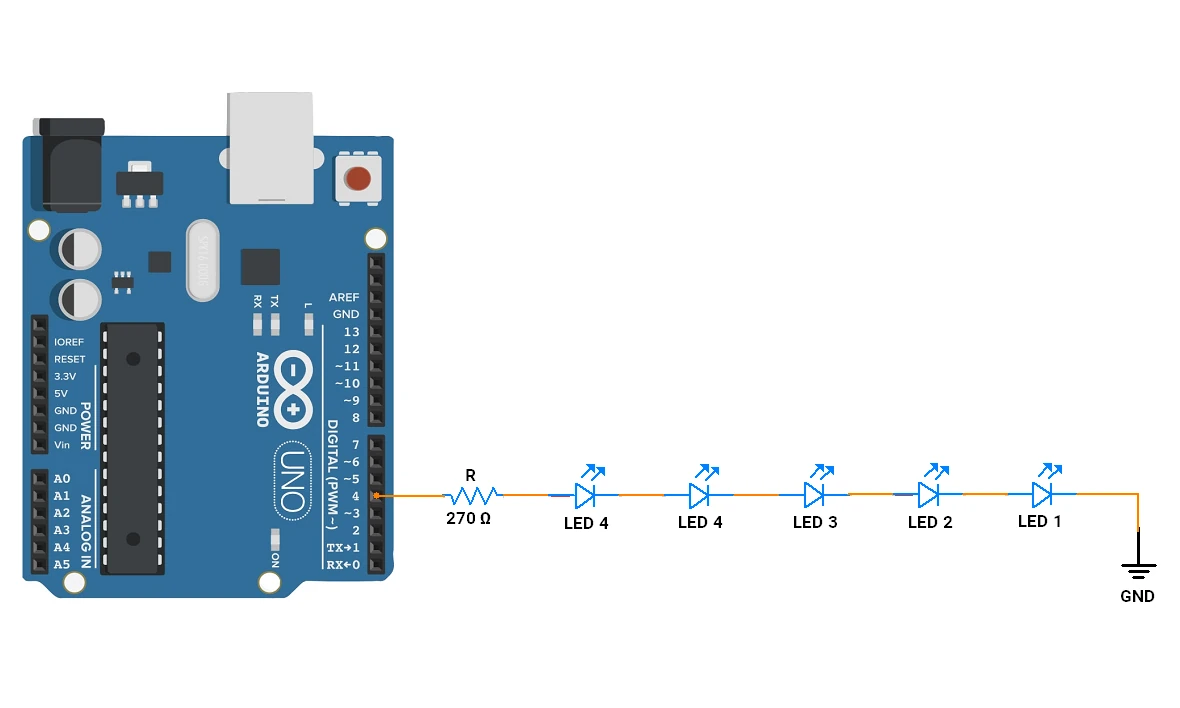

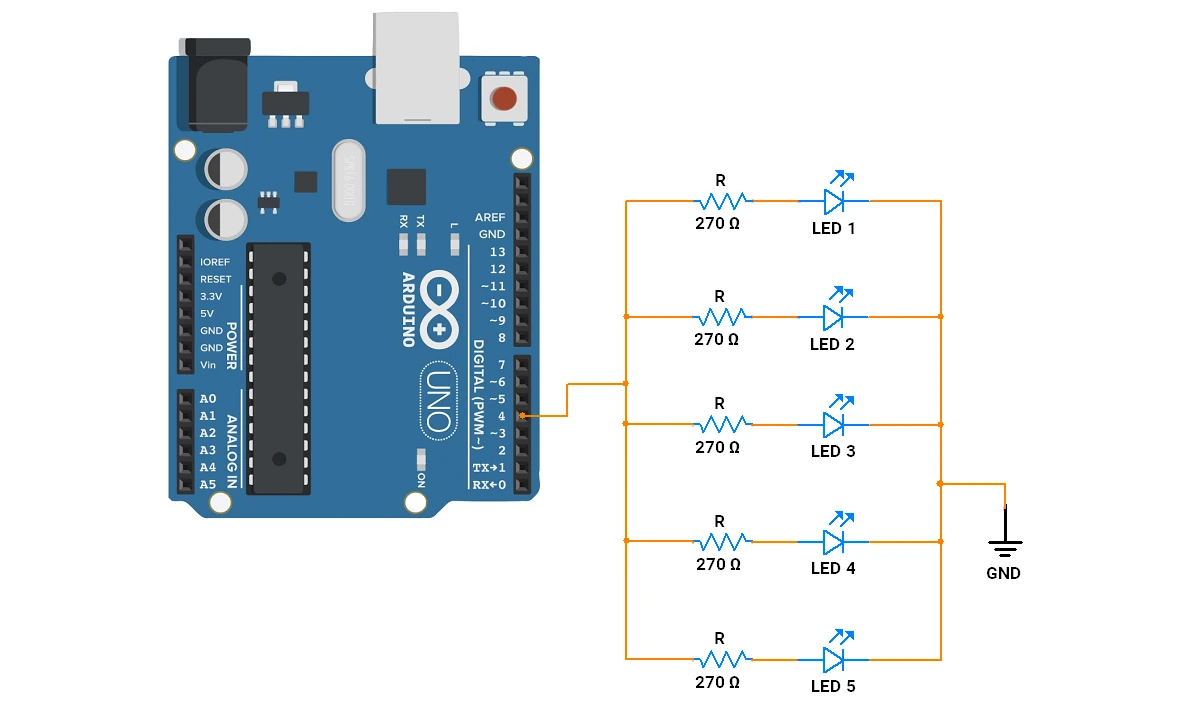

Georgia made the following circuits. In which of the following circuits will safely turn ON LEDs? (Consider the voltage dropdown of LED to be 1.8 Volts)

Need Help? Refer to the Quick Guide below
