16. Diode Selection

Question.3

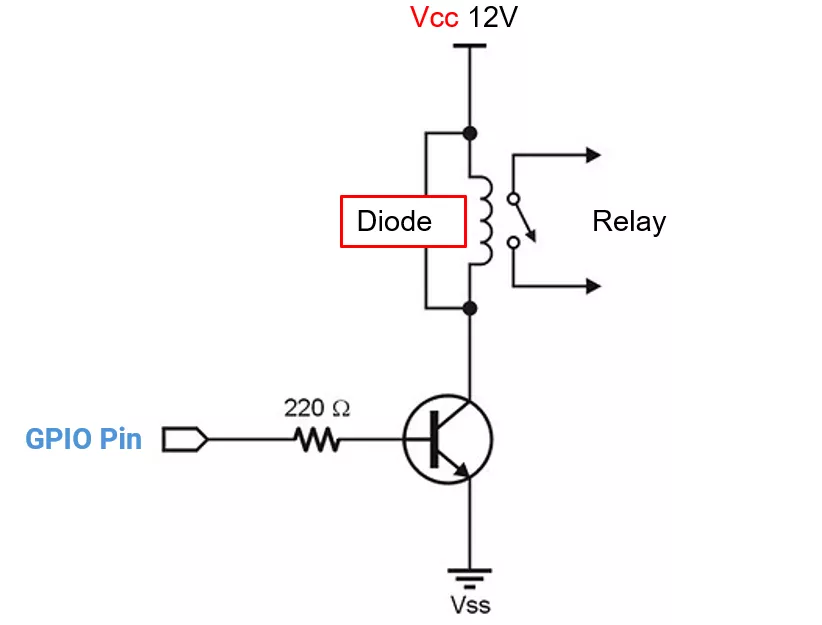

A 12 V relay is driven by a transistor from a microcontroller pin. You need a diode across the relay coil for protection.
Which type of diode is the most appropriate choice?

A very small, low-current signal diode
A general-purpose rectifier diode rated for moderate current
A Zener diode matched to the relay voltage
A low-capacitance ESD protection diode
