28. GDT Applications

Question.4

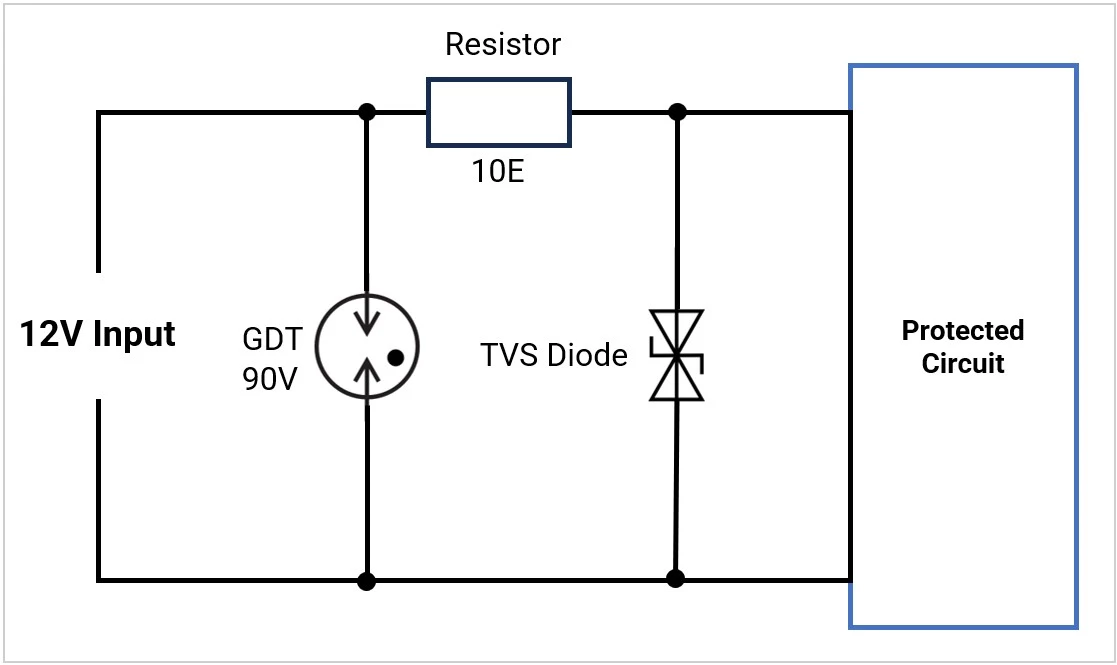

GDT connected for surge protection. Despite GDT’s massive surge capability, the design also includes a small TVS diode downstream.
Why does this design include- TVS Diode?

GDt-Connection-digram-with-TVS-Diode-Protection

The TVS provides backup in case the GDT physically fails open
The TVS handles the initial fast transient because the GDT takes microseconds to fire — during that delay, the IC is unprotected
The TVS reduces the capacitance seen by the data line
The TVS limits the continuous current through the GDT to prevent follow current

Restart quiz!
