Question.4

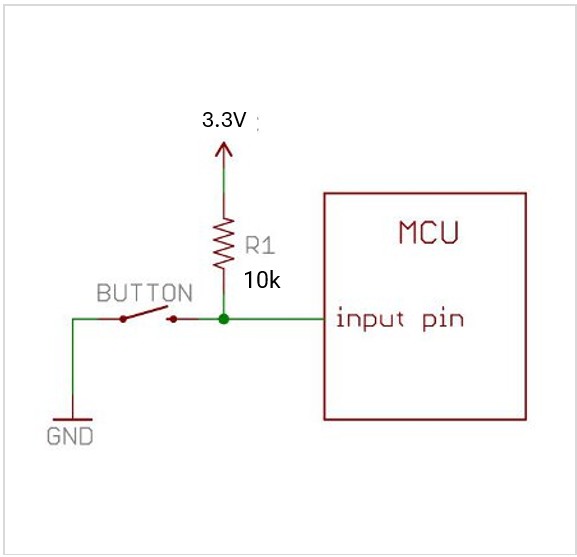

A switch is connected to an MCU GPIO with a 10 kΩ pull-up to 3.3 V. The switch is closed (pressed), shorting the GPIO to GND.
What is the current flowing through the switch contacts?
Select Answer
3.3 mA
33 mA
0.33 mA
0 A — no current flows in steady state
