4. Replace Through-Hole with SMD Resistor

1. Reading the Resistor Color Code
The highlighted resistor on the board shows the following color bands:
Band
Color
Value
Band 1
Brown
1
Band 2
Black
0
Band 3 (Multiplier)
Orange
×1,000
Band 4 (Tolerance)
Gold
±5%
Calculation: 10 × 1,000 = 10,000Ω = 10kΩ, ±5%
This is a standard ¼W through-hole resistor. For the SMD retrofit, we need a resistor that matches these specs:
10kΩ · ±5% or better · ≥0.25W · 1206 package · Thick Film · SMD · −55°C to +125°C · RoHS compliant
2. How to Find It on DigiKey

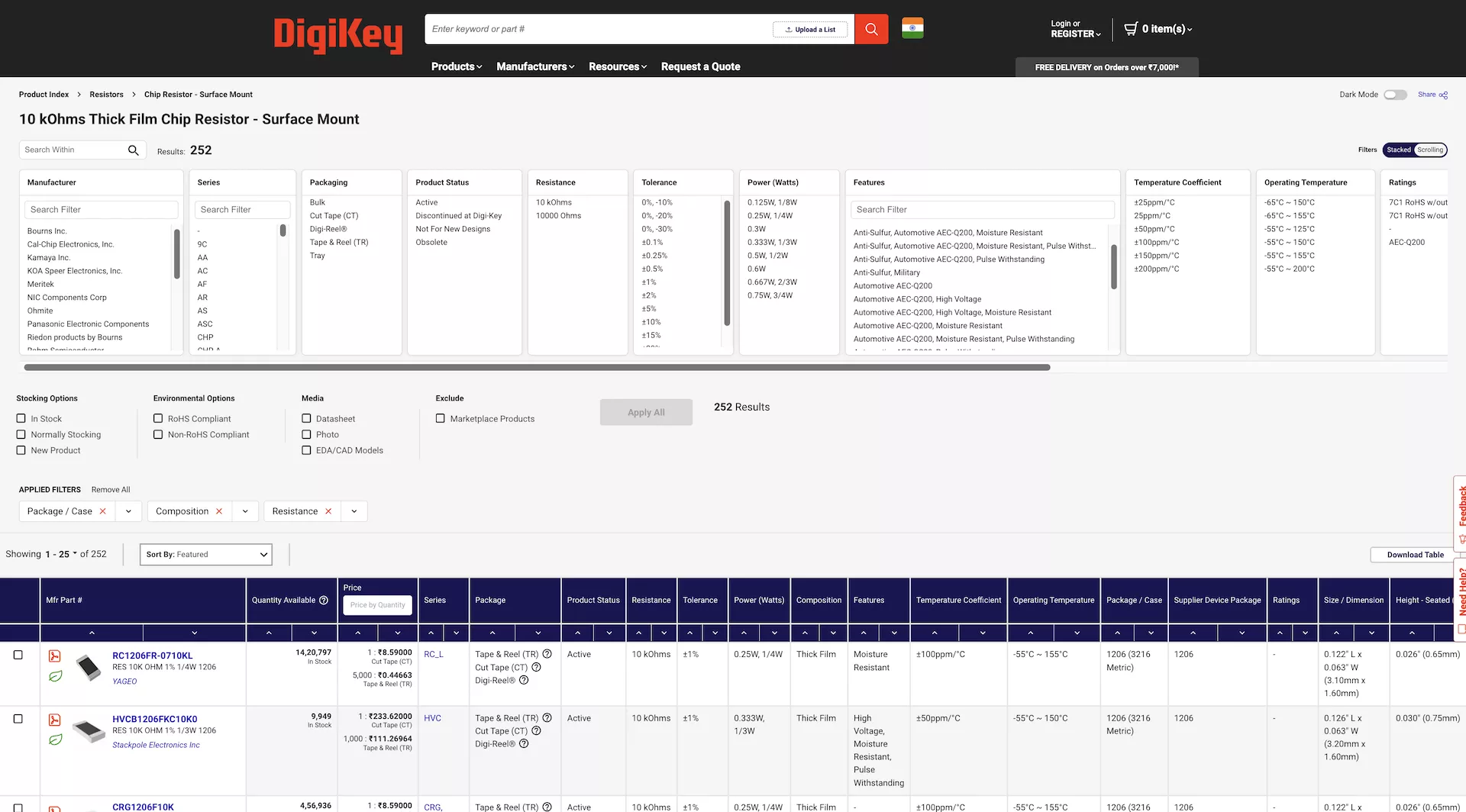

Go to DigiKey.com → Resistors → Chip Resistor - Surface Mount
Apply these filters in the left panel:
Resistance → 10 kOhms
Tolerance → ±5% (±1% is also acceptable — tighter is always fine)
Power (Watts) → 0.25W (same as 1/4W)
Composition → Thick Film
Package / Case → 1206 (3216 Metric)
Operating Temperature → −55°C to +125°C
Part Status → Active
3. Key Specifications & What They Mean
Specification
Required
Why
Resistance
10kΩ
Must match original value exactly.
Tolerance
±5% or better
Gold band = ±5%. Tighter is acceptable.
Power Rating
≥0.25W
Matches original ¼W rating.
Type
Thick Film
Standard, cost-effective for general use.
Package
1206
Handles 0.25W; easy to rework.
Mounting
Surface Mount
SMD retrofit requirement.
Temp Range
−55°C to +125°C
Standard industrial operating range.
RoHS
Yes
Compliance required.
4. Selecting a Safe, Production-Ready Part
The filtered list will show many matching parts. Before you pick one, check: Is the part Active (not obsolete)? Is stock available? Is the manufacturer reputable? Is a datasheet available?
Full checklist: 📄 How to Select a Safe, Production-Ready Component — EWskills Guide
5. Filtered DigiKey Link
👉 View Matching Parts on DigiKey — 10kΩ, 1206, ±5%, Thick Film, 0.25W

Band	Color	Value
Band 1	Brown	1
Band 2	Black	0
Band 3 (Multiplier)	Orange	×1,000
Band 4 (Tolerance)	Gold	±5%

Specification	Required	Why
Resistance	10kΩ	Must match original value exactly.
Tolerance	±5% or better	Gold band = ±5%. Tighter is acceptable.
Power Rating	≥0.25W	Matches original ¼W rating.
Type	Thick Film	Standard, cost-effective for general use.
Package	1206	Handles 0.25W; easy to rework.
Mounting	Surface Mount	SMD retrofit requirement.
Temp Range	−55°C to +125°C	Standard industrial operating range.
RoHS	Yes	Compliance required.
