56. I2C Data Frame

Question.8

Observe the following I2C waveforms & select the correct options:

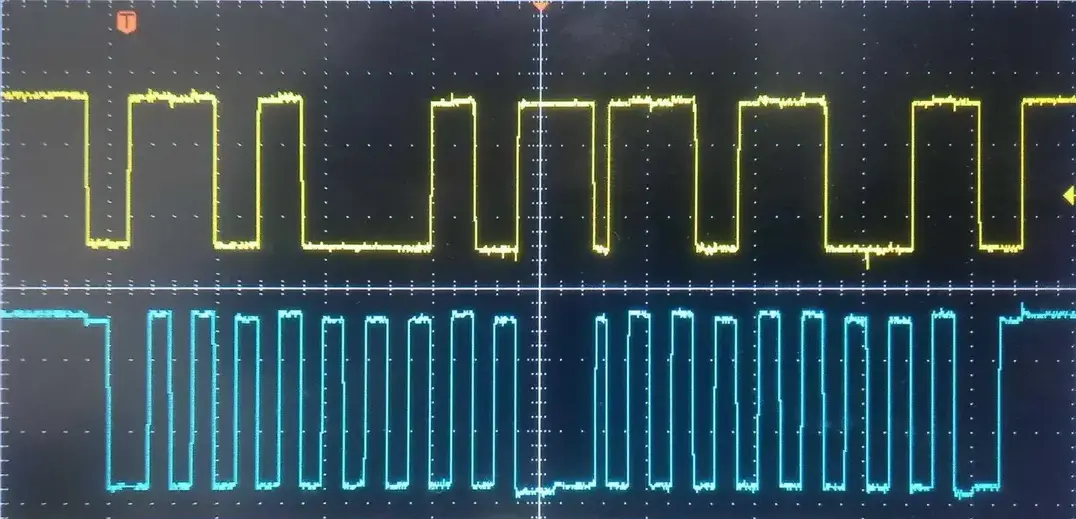

waveform 1

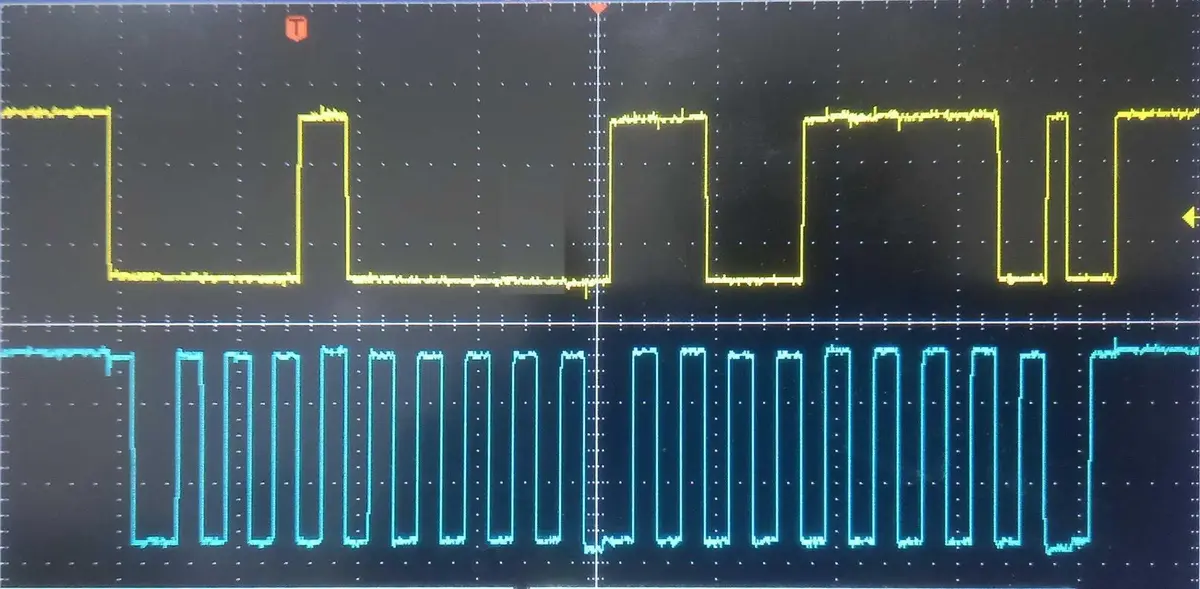

waveform 2

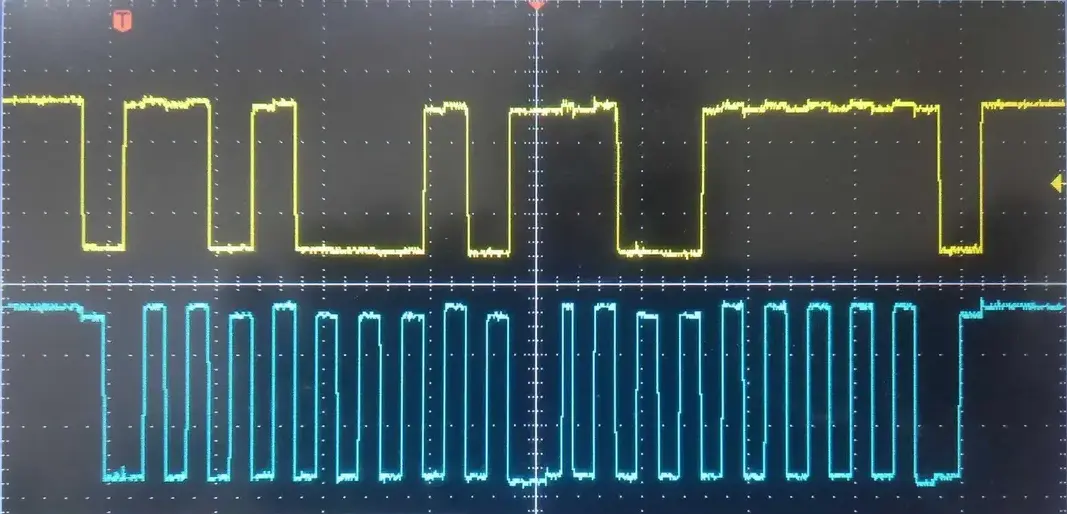

waveform 3

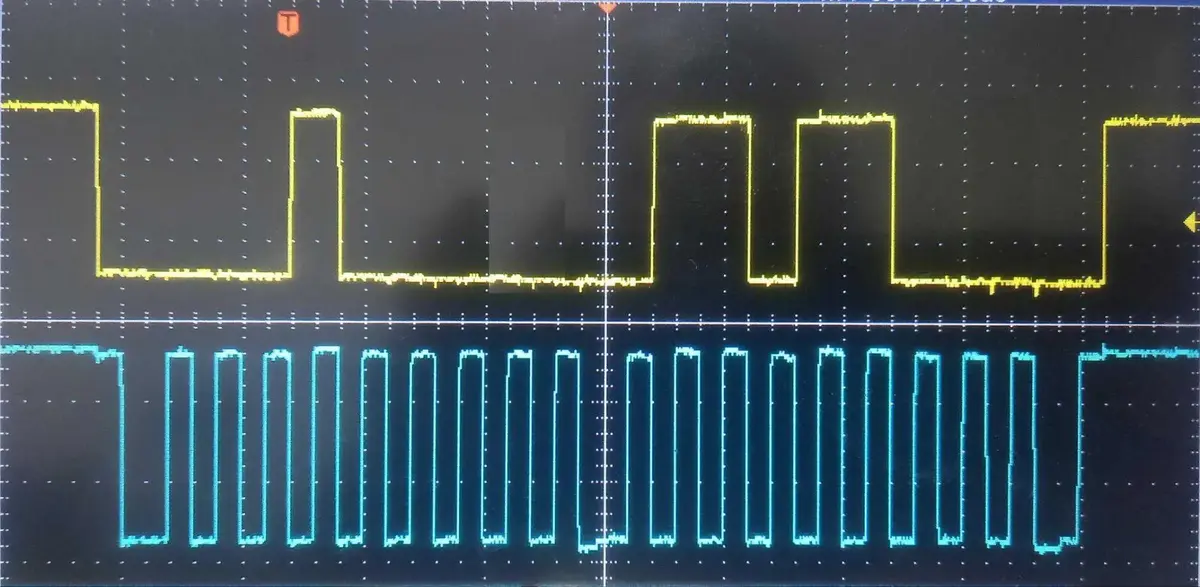

waveform 4

waveforms 1, 4 → Master Reading data
cannot be detected
waveforms 2, 3 → Master Reading data,
waveforms 1, 4 → Master Writing data.
waveforms 1, 3 → Master Reading data,
waveform 2, 4 → Master Writing data.
