Question.7

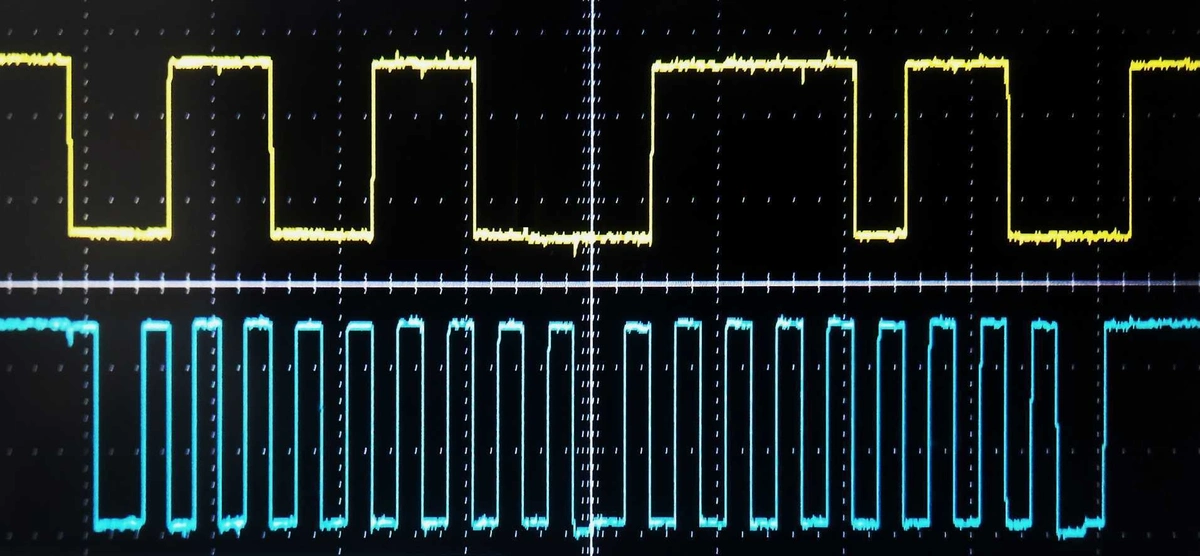

Observe the following waveform :
What is the address of the slave device & is that device found?
Select Answer
address = 0x33, slave is found
address = 0x66, slave is found
address = 0x33, slave is not found
address = 0x66, slave is not found
address = 0x33, the slave is found or not cannot be detected.
