Question.4

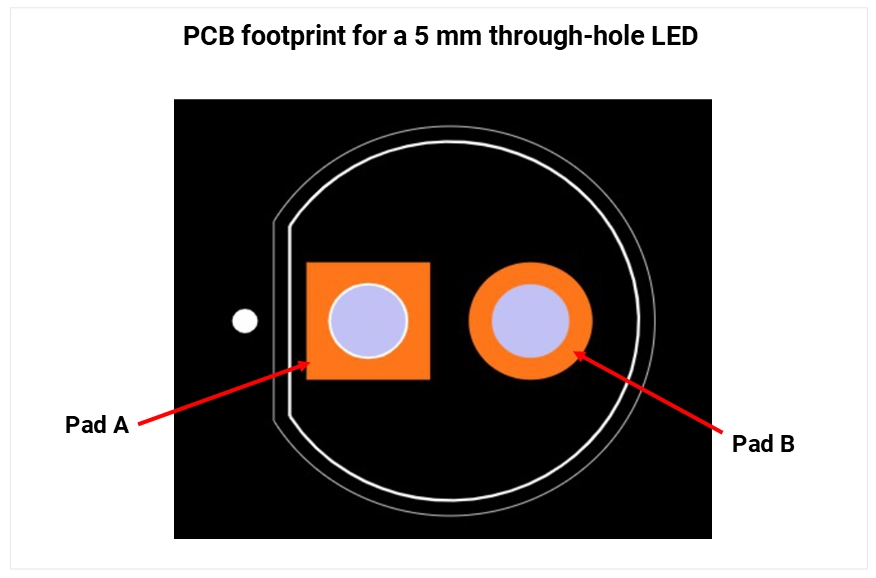

You are inspecting a PCB footprint for a 5 mm through-hole LED. The footprint has two pads labeled A and B. Which pad is the cathode (–)?
Select Answer
Pad A (square pad) is Cathode (–)
Pad B (round pad) is Cathode (–)
Both pads are interchangeable
PCB footprint does not indicate polarity
