34. LED Identification

Question.8

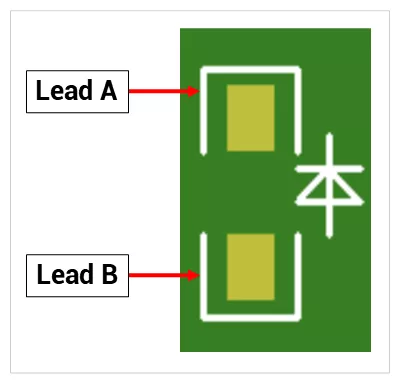

You are inspecting a PCB footprint for an 0805 SMD LED.
The footprint pads are labelled Lead A and Lead B.
The silkscreen shows some-kind of symbol near it.
Which pad is the cathode (–)?

Need Help? Refer to the Quick Guide below

Select Answer

Lead A is Cathode (–)
Lead B is Cathode (–)
Both leads are interchangeable
The silkscreen marker indicates anode (+)
