11. PPTC Characteristics & Behavior

Question.5

Tony uses a Littelfuse PPTC part 2016L030 (DigiKey Part Number: F4069TR-ND)
This part has (normal room temperature)
● Hold current (Ih)= 300mA
● Trip current (it)= 600mA
Which spike might trip the PPTC?
Refer to the Time Curve from the datasheet. Click here.

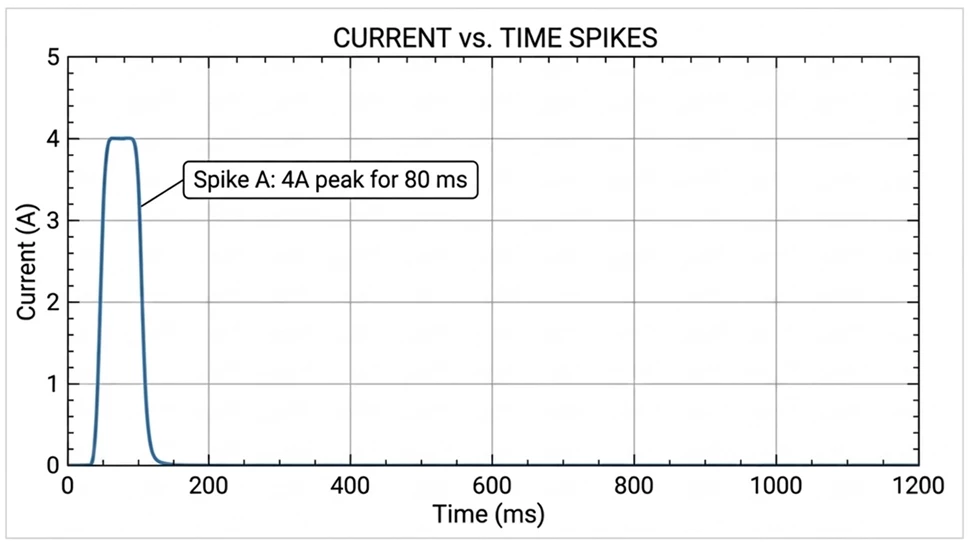

Spike A:
