18. Buck Converter Inductor Selection

Rohan is designing a 24V to 5V buck converter for an embedded control board.

The board can draw up to 2A load current.

He has designed the converter to use a 22 µH shielded power inductor.



Help him select a suitable SMD power inductor.

Make sure it can handle the inductor current safely, has enough saturation margin, and keeps power loss low for efficient operation.

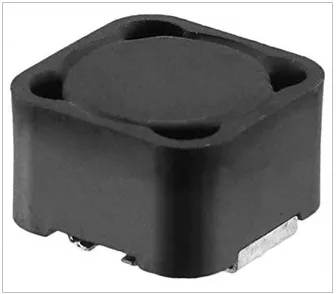

SMD-Shielded-Power-Inductor
Need Help? Refer to the Quick Guide below
