20. LEDs Fading Speed Control

Connect 5 LEDs and a Potentiometer to a microcontroller and create the following pattern.

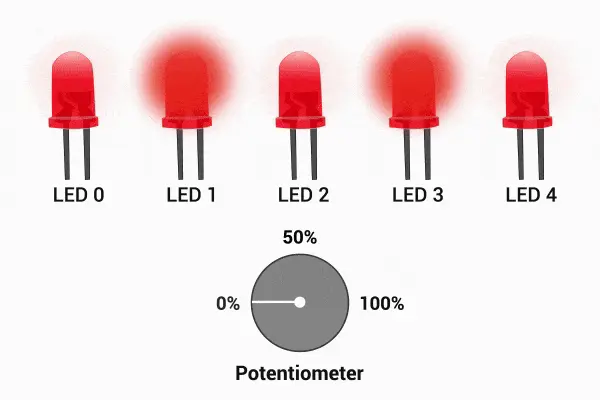

We can observe alternate LED fade-in/out patterns. Where the fading speed is controlled by a potentiometer, smoothly.

Speed Control:

  • When the knob is turned toward 0%, the LEDs fade quickly.
  • When the knob is turned toward 100%, the LEDs fade slowly.
