Circular Buffer

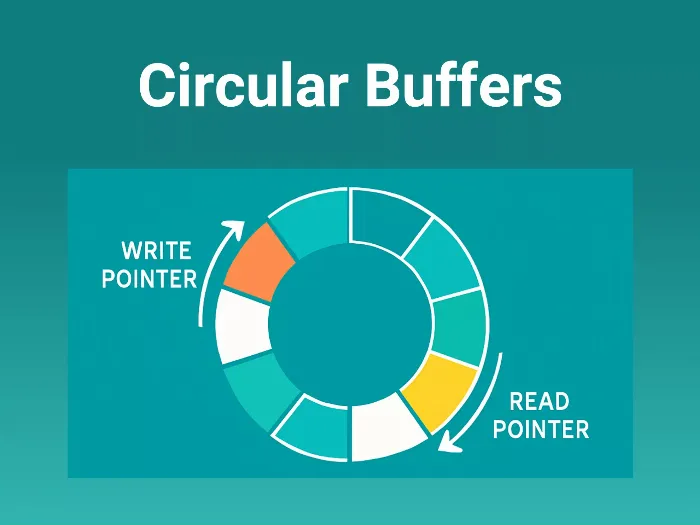

A circular buffer (ring buffer) is a fixed-size, first-in-first-out (FIFO) data structure where data is written at the head and read from the tail, and both wrap around when reaching the end.

In embedded firmware, circular buffers are heavily used in:

• UART, SPI, I2C communication buffers
• Logging systems
• Sensor data streams
• Real-time sampling (ADC/DMA)
• Interrupt-safe, memory-efficient buffering


Struct Definition

#define BUFFER_SIZE 50
typedef struct {
    uint8_t buffer[BUFFER_SIZE];
    uint8_t head;
    uint8_t tail;
    uint8_t count;
} CircularBuffer;

Initialization

void init_buffer(CircularBuffer *cb) {
    cb->head = 0;
    cb->tail = 0;
    cb->count = 0;
}

Insert Operation (push)

bool buffer_push(CircularBuffer *cb, uint8_t data) {
    if (cb->count == BUFFER_SIZE) {
        return false;  // Buffer Full
    }

    cb->buffer[cb->head] = data;
    cb->head = (cb->head + 1) % BUFFER_SIZE;
    cb->count++;
    return true;
}

Wrap-around logic via modulus keeps head circular.

Read Operation (pop)

bool buffer_pop(CircularBuffer *cb, uint8_t *data) {
    if (cb->count == 0) {
        return false;  // Buffer Empty
    }

    *data = cb->buffer[cb->tail];
    cb->tail = (cb->tail + 1) % BUFFER_SIZE;
    cb->count--;
    return true;
}

Peek (Preview without removing)

bool buffer_peek(CircularBuffer *cb, uint8_t *data) {
    if (cb->count == 0) return false;
    *data = cb->buffer[cb->tail];
    return true;
}

Check Full and Empty

bool buffer_is_full(CircularBuffer *cb) {
    return cb->count == BUFFER_SIZE;
}

bool buffer_is_empty(CircularBuffer *cb) {
    return cb->count == 0;
}

 Example Usage

int main() {
    CircularBuffer cb;
    init_buffer(&cb);

    // Insert elements
    for (int i = 0; i < 6; i++) {
        buffer_push(&cb, i * 10);  // 0, 10, 20, ...
    }

    // Peek
    uint8_t peek_val;
    if (buffer_peek(&cb, &peek_val)) {
        printf("Peek: %d\n", peek_val);  // Should be 0
    }

    // Pop values
    uint8_t val;
    while (buffer_pop(&cb, &val)) {
        printf("Popped: %d\n", val);
    }

    return 0;
}

Buffer State After Few Push/Pop Operations

Assume:

• BUFFER_SIZE = 8
• After pushing 4 values: [10, 20, 30, 40, _, _, _, _]
• head = 4, tail = 0, count = 4

If we pop twice:

• Buffer = [10, 20, 30, 40, _, _, _, _]
• head = 4, tail = 2, count = 2


Relevance in Embedded Systems

Common Pitfalls (Real-World Tips)

• ❌ Forgetting to handle wrap-around → use modulus or manual wrap
• ❌ Not checking for buffer full/empty
• ❌ Overwriting unread data
• ✅ Use count to track size reliably
• ✅ Use uint8_t for tight embedded memory
• ✅ Avoid dynamic allocation — use static fixed-size buffers
