60. Latches and Flip Flops-i
Question.7
Based on the two memory cells shown in the image, what is the fundamental difference between them?
In sequential circuits, the output depends on the present inputs and the previously stored state.
1-bit memory cell
- NOT1 inverts S and NOT2 inverts R.
- Their outputs drive two cross-coupled NAND gates, whose feedback keeps the last output state after the input returns LOW.
- S = 1 sets Qn = 1, R = 1 resets Qn = 0, and S = R = 0 stores the previous state.
SR Latch: -
An active-HIGH input IE (Input Enable) controls when the SR latch can respond.
When IE = 0, the SR latch holds its previous state regardless of S and R.
| IE | S | R | Qₙ₊₁ | Qₙ₊₁’ | Operation |
|---|---|---|---|---|---|
| 0 | X | X | Qₙ | Q̅ₙ | Hold |
| 1 | 0 | 0 | Qₙ | Q̅ₙ | Hold |
| 1 | 1 | 0 | 1 | 0 | Set |
| 1 | 0 | 1 | 0 | 1 | Reset |
| 1 | 1 | 1 | 1 | 1 | Invalid |
X means don’t care
Invalid condition: When IE = 1 and S = R = 1, both outputs become HIGH, so Q and Q’ are no longer complementary. This is an invalid condition.
Clock Signal
A clock signal typically alternates periodically between logic 0 and logic 1.
It is commonly applied to a latch Enable input or to the clock input of a flip-flop.
JK Latch: -
The JK latch removes the SR invalid input by using output feedback.
When J = K = 1, the feedback makes the stored state toggle instead of producing an invalid output.
| IE | J | K | Qₙ₊₁ | Operation |
|---|---|---|---|---|
| 0 | X | X | Qₙ | Hold |
| 1 | 0 | 0 | Qₙ | Hold |
| 1 | 0 | 1 | 0 | Reset |
| 1 | 1 | 0 | 1 | Set |
| 1 | 1 | 1 | Qₙ’ | Toggle / race-around risk |
Race-around condition:
In a level-triggered JK latch, J = K = 1 causes repeated toggling while the Enable/clock level remains active.
If the active clock-pulse width is greater than the propagation delay, Q can switch several times and its final state becomes uncertain.
Latches vs Flip Flops:-

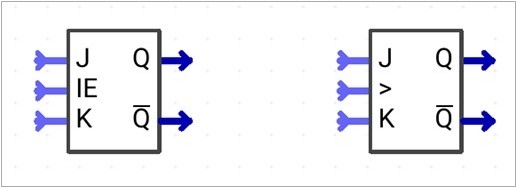

- A latch is level-triggered: it can respond throughout the active Enable level.
- A flip-flop is edge-triggered: it updates only at the active clock edge.
| Feature | Latch | Flip-Flop |
|---|---|---|
| Activation | Signal level | Signal edge |
| Symbol identification | EN or IE input | > clock symbol |
| Output changes | During the active level | At the active edge |
| Input control | ENABLE | Clock |
| Main use | Level-sensitive storage | Edge-triggered storage |
An edge-triggered JK flip-flop solves the race-around problem because J and K are sampled only once at the active clock edge, allowing at most one toggle per edge.
Latches and Flip Flops Activation
| Active-HIGH or Positive edge | Active-LOW or Negative edge | |
|---|---|---|
| Level-triggered latch | Active while IE = 1.  | Active while IE = 0.  |
| Edge-triggered Flip Flop | Active at 0 → 1.  | Active at 1 → 0.  |
Latch applications
- Temporary data storage in level-sensitive data paths.
- Holding control or status signals while Enable is active.
Flip-flop applications
- Registers and counters.
- State storage in finite state machines (FSMs).
Excitation Tables
A truth table finds the output from known inputs.
An excitation table finds the inputs required for a desired output change.
SR Flip-Flop Excitation Table
| Qₙ | Qₙ₊₁ | S | R | Required action |
|---|---|---|---|---|
| 0 | 0 | 0 | X | Remain reset |
| 0 | 1 | 1 | 0 | Set |
| 1 | 0 | 0 | 1 | Reset |
| 1 | 1 | X | 0 | Remain set |
JK Flip-Flop Excitation Table
| Qₙ | Qₙ₊₁ | J | K | Required action |
|---|---|---|---|---|
| 0 | 0 | 0 | X | Remain reset |
| 0 | 1 | 1 | X | Set or toggle |
| 1 | 0 | X | 1 | Reset or toggle |
| 1 | 1 | X | 0 | Remain set |
D Flip Flop
A D flip-flop can be formed from a JK flip-flop by connecting D directly to J and D̅ to K.
J = D
K = D̅
Qₙ₊₁ = DTruth Table
| Clock | D | Qₙ₊₁ | Operation |
|---|---|---|---|
| Active edge | 0 | 0 | Store 0 |
| Active edge | 1 | 1 | Store 1 |
| No active edge | X | Qₙ | Hold |
Excitation Table
| Qₙ | Qₙ₊₁ | D |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 0 |
| 1 | 1 | 1 |
D = Qₙ₊₁Applications
- Data registers and pipeline storage.
- One-bit data capture and building blocks for input synchronizer chains.
T Flip Flop
A T flip-flop can be formed from a JK flip-flop by connecting both J and K to T.
J = T
K = T
Qₙ₊₁ = T ⊕ QₙTruth Table
| Clock | T | Qₙ₊₁ | Operation |
|---|---|---|---|
| Active edge | 0 | Qₙ | Hold |
| Active edge | 1 | Qₙ’ | Toggle |
| Non-active edge | X | Qₙ | Hold |
Excitation Table
| Qₙ | Qₙ₊₁ | T |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
T = Qₙ ⊕ Qₙ₊₁Applications
- Binary counters.
- When T = 1, Q toggles on every active clock edge, producing a divide-by-2 output.
Asynchronous Inputs:-
The shown PRESET and CLEAR inputs are active-LOW. PRE̅ = 0 asynchronously sets Q = 1, while CLR̅ = 0 asynchronously resets Q = 0, regardless of the clock or synchronous inputs.
| P̅R̅E̅ | C̅L̅R̅ | Qₙ | Q̅ₙ | Operation |
|---|---|---|---|---|
| 1 | 1 | Qₙ | Q̅ₙ | Normal clocked operation |
| 0 | 1 | 1 | 0 | Asynchronous set |
| 1 | 0 | 0 | 1 | Asynchronous clear |
| 0 | 0 | 1 | 1 | Invalid / not allowed |
Flip Flop conversion:
- To convert one flip-flop into another
- list the target next-state behavior
- use the available flip-flop excitation table to find its required inputs
- simplify the input equations
- connect the circuit accordingly
Implementing T Flip Flop from D Flip Flop
For each T-flip-flop transition, D must equal the required next state Qₙ₊₁.
| T | Qₙ | Qₙ₊₁ | Required D |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 0 |
D = T ⊕ Qₙ
Flip-Flop Conversion Table
| Target Flip Flop | Available Flip Flop | Required connections |
|---|---|---|
| D | SR | S = D, R = D̅ |
| D | JK | J = D, K = D̅ |
| D | T | T = D ⊕ Qₙ |
| T | SR | S = T · Q̅ₙ, R = T · Qₙ |
| T | JK | J = T, K = T |
| T | D | D = T ⊕ Qₙ |
| JK | SR | S = J · Q̅ₙ, R = K · Qₙ |
| JK | T | T = J · Q̅ₙ + K · Qₙ |
| JK | D | D = J · Q̅ₙ + K̅ · Qₙ |
| SR | D | D = S + R̅ · Qₙ |
| SR | JK | J = S, K = R |
| SR | T | T = S · Q̅ₙ + R · Qₙ |
For conversions targeting an SR flip-flop, S = R = 1 remains prohibited.
Controlled D/T Flip Flop with inputs I and CNT
The JK input connections are J = I and K = I ⊕ CNT.
- When CNT = 0, the circuit behaves as a T flip-flop with T = I.
- When CNT = 1, it behaves as a D flip-flop with D = I.
J = I
K = I ⊕ CNTTruth Table
| CNT | I | Qₙ | Qₙ₊₁ | Operation |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | T mode: hold |
| 0 | 0 | 1 | 1 | T mode: hold |
| 0 | 1 | 0 | 1 | T mode: toggle |
| 0 | 1 | 1 | 0 | T mode: toggle |
| 1 | 0 | 0 | 0 | D mode: store 0 |
| 1 | 0 | 1 | 0 | D mode: store 0 |
| 1 | 1 | 0 | 1 | D mode: store 1 |
| 1 | 1 | 1 | 1 | D mode: store 1 |
Excitation Table
| CNT | Qₙ | Qₙ₊₁ | Required I | Behavior of I |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | T Behavior |
| 0 | 0 | 1 | 1 | T Behavior |
| 0 | 1 | 0 | 1 | T Behavior |
| 0 | 1 | 1 | 0 | T Behavior |
| 1 | 0 | 0 | 0 | D Behavior |
| 1 | 0 | 1 | 1 | D Behavior |
| 1 | 1 | 0 | 0 | D Behavior |
| 1 | 1 | 1 | 1 | D Behavior |
I = CNT · Qₙ₊₁ + C̅N̅T̅ · (Qₙ ⊕ Qₙ₊₁)JK Master Slave Flip Flop
A JK master-slave flip-flop uses two stages connected as Master → Slave.
- The master captures J and K during one clock level
- slave transfers the master state to
Qnduring the inverted clock level.
The Master and Slave operate on opposite clock levels, so only one stage is active at a time. This prevents the race-around condition.
- Clock = 1: Master active, Slave holds.
- Clock = 0: Master holds, Slave updates Qn.
QnandQn'are fed back to the Master input logic for JK operation.
Therefore, only one output change occurs per clock pulse, preventing race-around.
| J | K | Qₙ₊₁ | Operation |
|---|---|---|---|
0 | 0 | Qₙ | Hold |
0 | 1 | 0 | Reset |
1 | 0 | 1 | Set |
1 | 1 | Q̅ₙ | Toggle |
