8. 4-to-1 Multiplexer by Module Instantiation

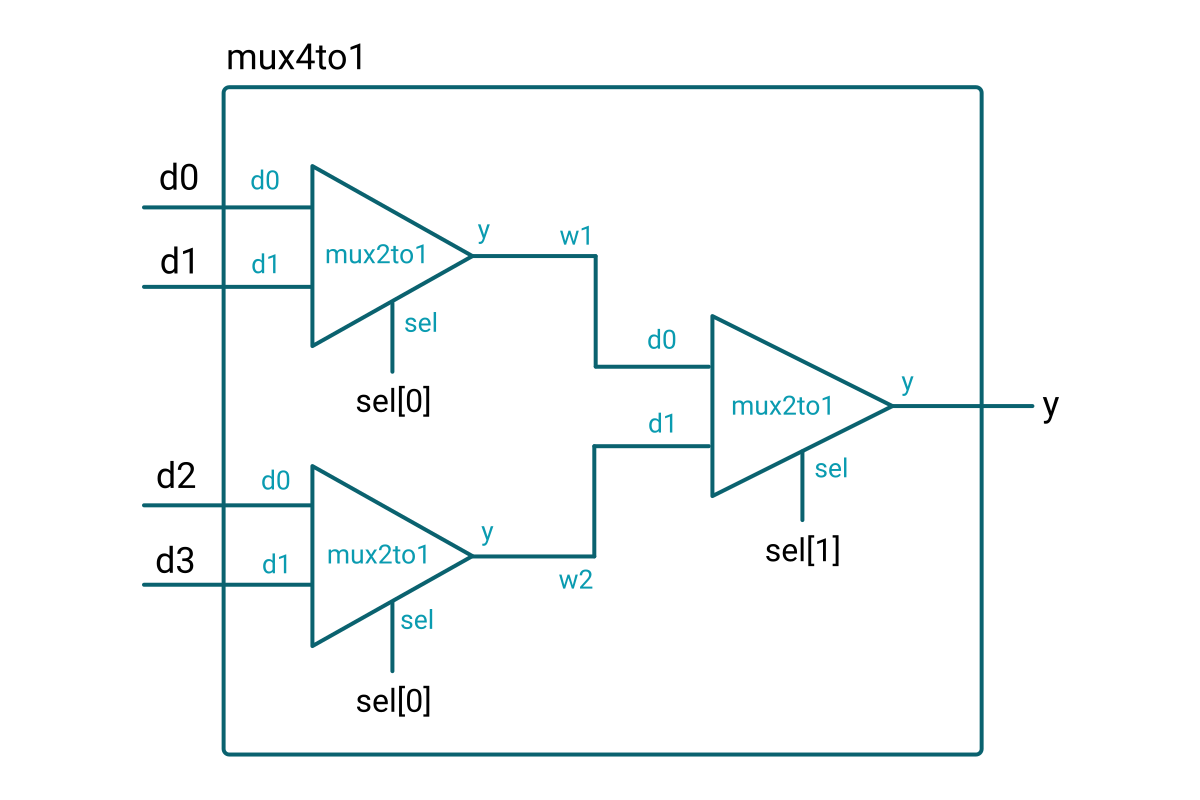

Design a 4-to-1 multiplexer (MUX) by instantiating three 2-to-1 multiplexers

Requirements:

  • Module name: mux4to1
  • Inputs:
    • d0, d1, d2, d3 → four 1-bit data inputs
    • sel → 2-bit select input
  • Output:
    • y → selected data output (1-bit)



Truth Table

sel[1:0]y
2'b00d0
2'b01d1
2'b10d2
2'b11d3
Loading...

Please login to run the code.

Testbench Code

`timescale 1ns/1ps

module tb_mux4to1;
    // ========= Inputs / Outputs =========
    reg d0, d1, d2, d3;
    reg [1:0] sel;
    wire y;

    // ========= Expected + mismatch =========
    reg  expected_y;
    wire mismatch = (y !== expected_y);

    // ========= Counters =========
    integer TOTAL_TEST_CASES        = 0;
    integer TOTAL_PASSED_TEST_CASES = 0;
    integer TOTAL_FAILED_TEST_CASES = 0;

    // ========= DUT =========
    mux4to1 dut (
        .d0(d0), .d1(d1), .d2(d2), .d3(d3),
        .sel(sel),
        .y(y)
    );

    // ========= VCD: dump only I/O, expected, mismatch =========
    initial begin
        $dumpfile("tb_mux4to1.vcd");
        $dumpvars(0,
            tb_mux4to1.d0,
            tb_mux4to1.d1,
            tb_mux4to1.d2,
            tb_mux4to1.d3,
            tb_mux4to1.sel,
            tb_mux4to1.y,
            tb_mux4to1.expected_y,
            tb_mux4to1.mismatch
        );
    end

    // ========= Golden model =========
    task compute_expected;
        input t_d0, t_d1, t_d2, t_d3;
        input [1:0] t_sel;
        begin
            case (t_sel)
                2'b00: expected_y = t_d0;
                2'b01: expected_y = t_d1;
                2'b10: expected_y = t_d2;
                2'b11: expected_y = t_d3;
            endcase
        end
    endtask

    // ========= Exhaustive run with counters =========
    integer s, d;
    initial begin
        $display("sel d0 d1 d2 d3 | y | expected_y | mismatch");
        for (s = 0; s < 4; s = s + 1) begin
            for (d = 0; d < 16; d = d + 1) begin
                {d0, d1, d2, d3} = d[3:0];
                sel = s[1:0];

                compute_expected(d0, d1, d2, d3, sel);
                #1; // settle

                // Update counters
                TOTAL_TEST_CASES = TOTAL_TEST_CASES + 1;
                if (!mismatch)
                    TOTAL_PASSED_TEST_CASES = TOTAL_PASSED_TEST_CASES + 1;
                else
                    TOTAL_FAILED_TEST_CASES = TOTAL_FAILED_TEST_CASES + 1;

                // Per-vector line (inputs -> y -> expected_y -> mismatch)
                $display("%02b  %b  %b  %b  %b | %b | %b | %b",
                         sel, d0, d1, d2, d3, y, expected_y, mismatch);
            end
        end

        // ========= Summary =========
        $display("======================================");
        $display("TOTAL_TEST_CASES=%0d",        TOTAL_TEST_CASES);
        $display("TOTAL_PASSED_TEST_CASES=%0d", TOTAL_PASSED_TEST_CASES);
        $display("TOTAL_FAILED_TEST_CASES=%0d", TOTAL_FAILED_TEST_CASES);
        $display("ALL_TEST_CASES_PASSED=%s",
                 (TOTAL_FAILED_TEST_CASES==0) ? "true" : "false");
        $display("======================================");

        $finish;
    end
endmodule
