82. High-Frequency Measurement

Build a task for measuring the frequency of square wave signals above 100 kHz using a microcontroller. Achieve maximum range for measuring frequency.

Note: You can use any approach or method that can generate frequencies greater than 100 kHz (e.g., Function Generator, etc.)

Example:

Generating Frequency > 100 kHz using Arduino UNO

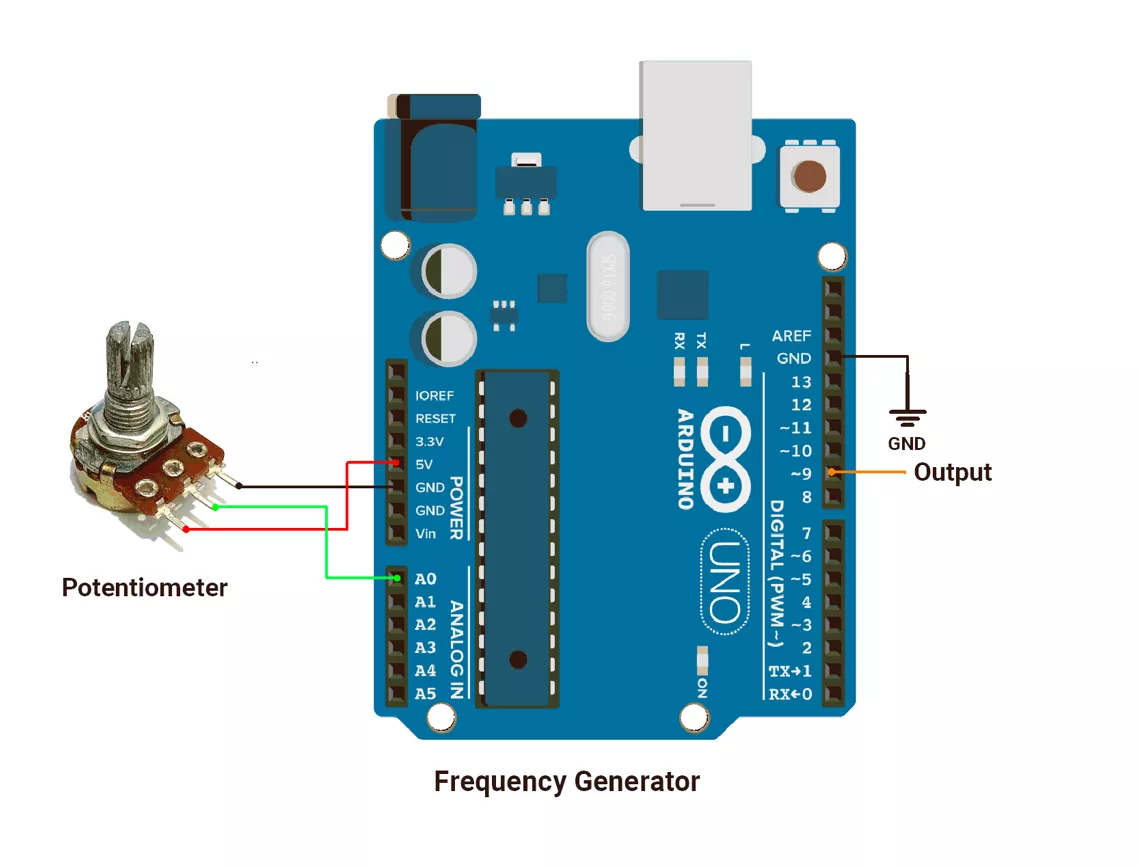

We have used one Arduino UNO along with a potentiometer to generate frequencies between 100 kHz and 8 MHz, where the potentiometer is used to vary the frequency.

The corresponding code for generating these frequencies is provided below.

#define pot A0

void setup() {
  cli();
  TCCR1A = (1 << COM1A0);                // Toggle OC1A on compare match
  TCCR1B = (1 << WGM12) | (1 << CS10);   // CTC mode, prescaler = 1
  OCR1A = 0;
  // Corrected DDRB Configuration
  DDRB |= (1 << PB1);       //D9 (PB1) as outputs
  sei(); // Enable interrupts
}

void loop()
{
   uint16_t potValue = analogRead(pot);

   //map pot value to genetate frequency >100KHz
   OCR1A = map(potValue, 0, 1024, 0, 80);

}
