4. NOT Gate

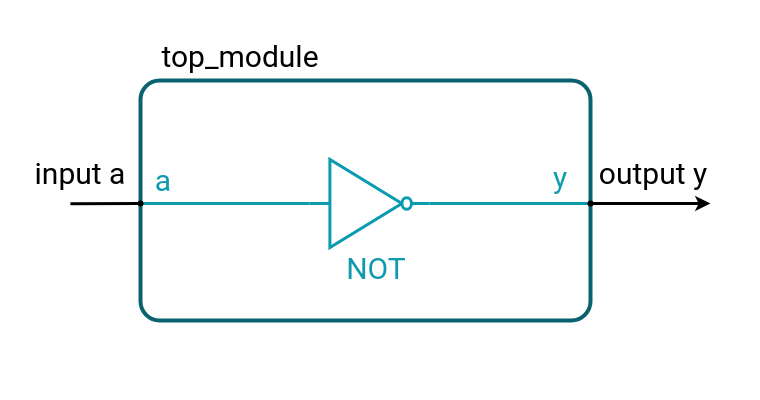

Write a Verilog module that implements a NOT gate (inverter). The output should always be the logical negation of the input.

Requirements:

Module Name: top_module
Inputs: a (1-bit)
Outputs: y (1-bit)

Please login to run the code.

Testbench Code

`timescale 1ns/1ps

module tb;
  // Inputs
  reg a;
  // Outputs
  wire y;
  // Expected Outputs
  reg expected_y;

  // Mismatch signal
  wire mismatch = (y !== expected_y);

  // DUT
  top_module dut(.a(a), .y(y));

  integer TOTAL, PASS, FAIL;
  initial begin
    $dumpfile("tb.vcd");
    // Dump inputs, outputs, expected, and mismatch
    $dumpvars(0, tb.a, tb.y, tb.expected_y, tb.mismatch);

    TOTAL=0; PASS=0; FAIL=0;

    a=0; expected_y=1; #5;
    TOTAL++; if (!mismatch) PASS++; else FAIL++;
    $display("a=%b | y=%b | expected_y=%b | mismatch=%b",
              a, y, expected_y, mismatch);

    a=1; expected_y=0; #5;
    TOTAL++; if (!mismatch) PASS++; else FAIL++;
    $display("a=%b | y=%b | expected_y=%b | mismatch=%b",
              a, y, expected_y, mismatch);

    $display("======================================");
    $display("TOTAL_TEST_CASES=%0d", TOTAL);
    $display("TOTAL_PASSED_TEST_CASES=%0d", PASS);
    $display("TOTAL_FAILED_TEST_CASES=%0d", FAIL);
    $display("ALL_TEST_CASES_PASSED=%s", (FAIL==0) ? "true" : "false");
    $display("======================================");
    $finish;
  end
endmodule
