14. RC Delay Capacitor Selection

John is designing a startup delay circuit so that a controller board gets about a 5 ms reset delay after power is turned ON.

So he has designed the following circuit.

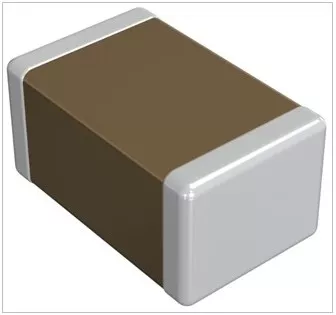

Help him select a 0603 SMD ceramic timing capacitor.

Make sure the selected capacitor keeps the delay accurate and stable over temperature.

0603-SMD-ceremic-timming-capacitor
Need Help? Refer to the Quick Guide below

Submit Your Solution

DigiKey Part Number

Search the suitable part on DigiKey and paste the part number. Know more

EW AI

EW AI validates your selected part with expert-level precision.

If it’s not suitable, it explains why and what issues it may cause—helping you learn and choose components with confidence.
