20. TVS Diode Selection
Question.4
Tony wants to add both a fuse and a TVS diode to protect a 24V DC input.

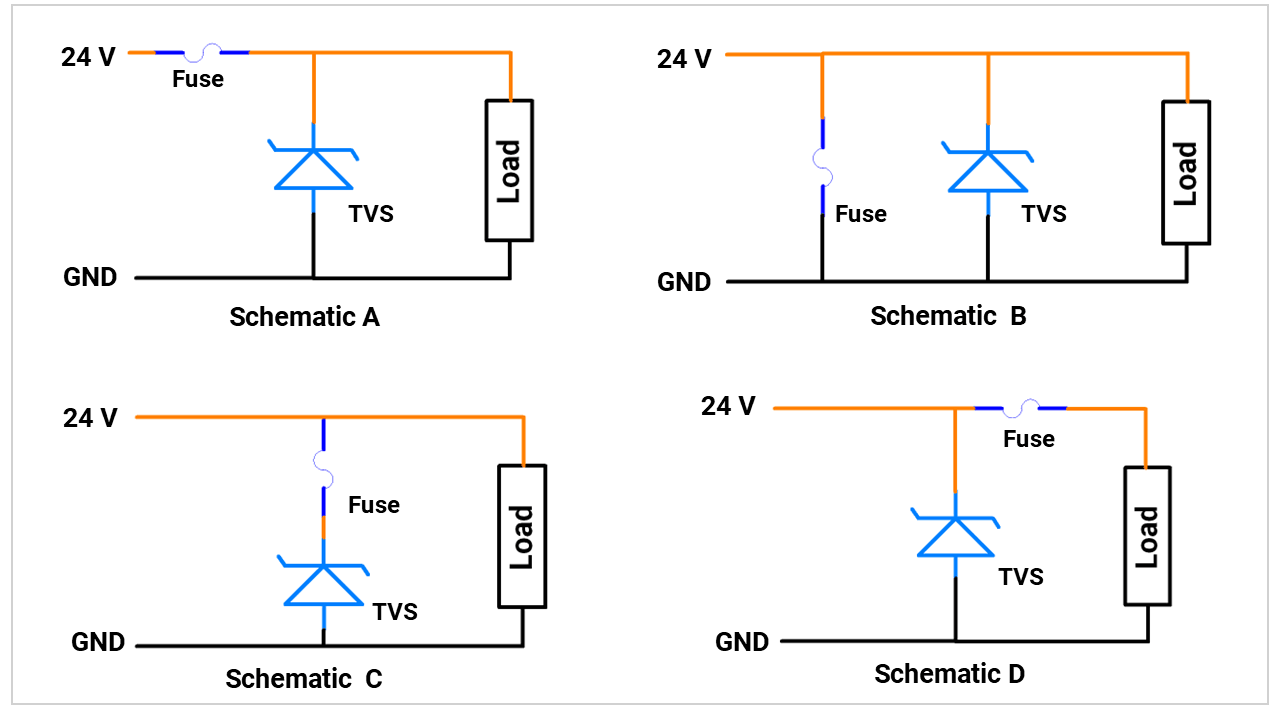

Four connection options are shown below. Which schematic is correct?
.png)
Question.4
Tony wants to add both a fuse and a TVS diode to protect a 24V DC input.
Four connection options are shown below. Which schematic is correct?
