27. TVS Diode Selection

Question.6

Kevin needs surge protection for a 5V USB power rail. The downstream IC has 7V absolute maximum.

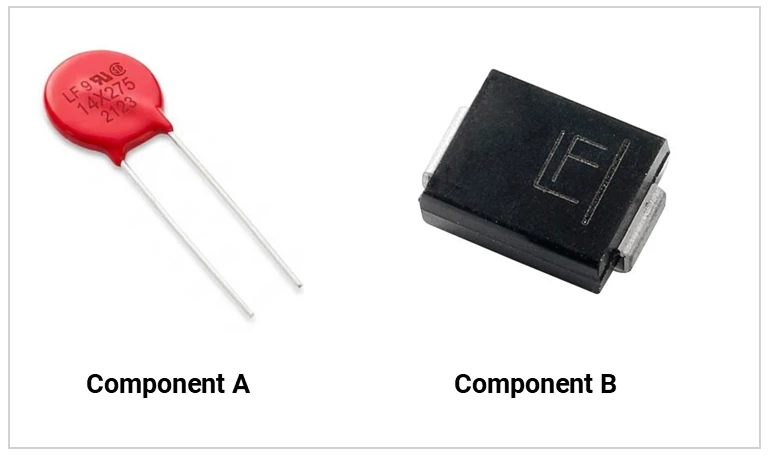

Two components are available. Which one is suitable?

Need Help? Refer to the Quick Guide below

Select Answer

Component A
Component B
Both are equally suitable for 5V protection
Neither — 5V systems do not need surge protection
